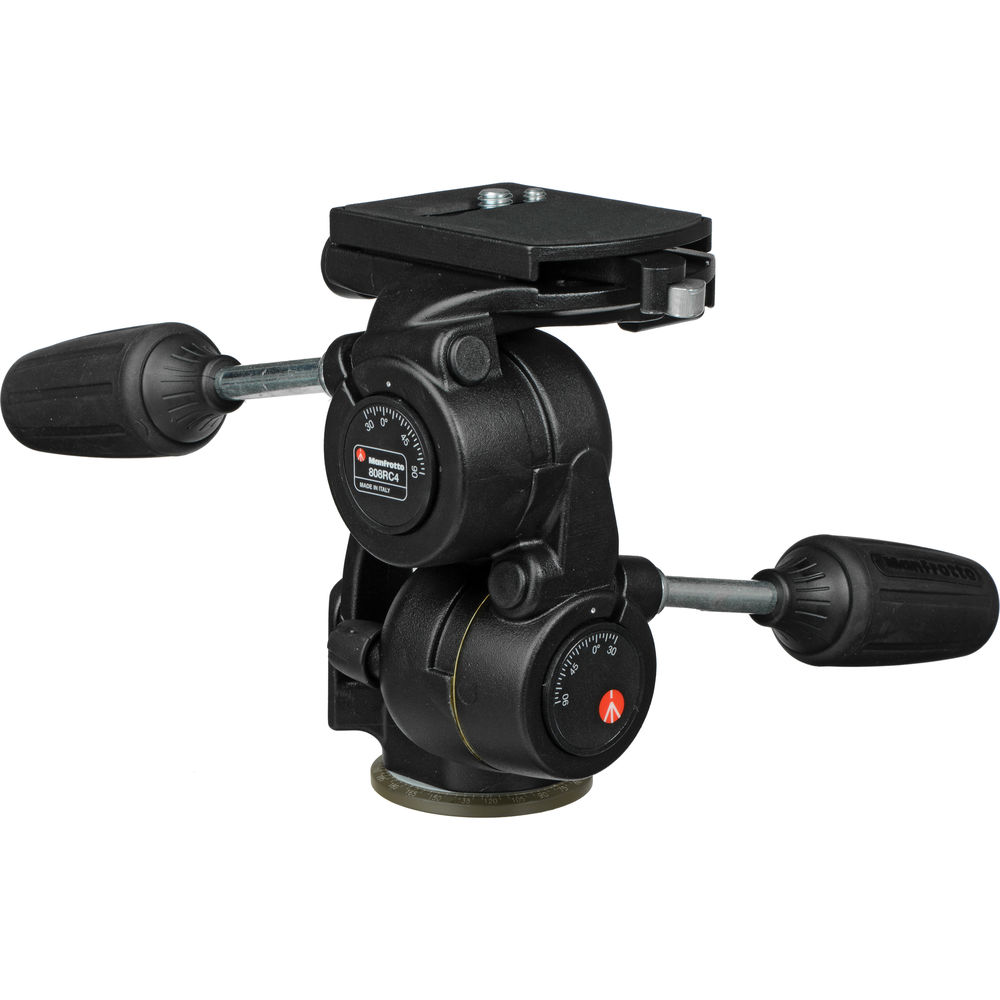

The 808RC4 3-Way, Pan-and-Tilt Head from Manfrotto has a load capacity of 26.5 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an integrated RC4 quick release cam lock and a 410PL Quick Release Plate. RC4 compatible quick release plates such as the 410PL can removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached.
Cameras or accessories that are compatible with a 1/4"-20 or 3/16"-20 mount can be connected to the 410PL Quick Release Plate, which measures 2.5 x 3.3 x 0.5" and has a rubberized, non-slip surface. The head can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation. Each of these three movements function independently of each other, have dedicated control handles, and can be locked into place by twisting each corresponding handle's rubberized grip.
To promote fast, repeatable, and accurate device positioning, the 808RC4 3-Way, Pan-and-Tilt Head also includes dedicated angle scales for each movement that are designed for easy visibility. For heavier loads, built-in counterbalance springs can be user-activated to help ensure smooth as well as gradual backwards, forwards, and portrait orientation tilt movements.
808RC4 3-Way, Pan-and-Tilt Head
410PL Quick Release Plate
Head
| Head Type | Pan & Tilt Head |
| Base Mount | 3/8"-16 Female |
| Camera Mounting Screw | 1/4"-20 Male, 3/8"-16 Male |
| Quick Release Plate Type | RC4 |
| Number of Bubble Levels | 3 |
| Lateral Tilt | -90° to +30° |
| Vertical Tilt | +90° to -30° |
| Panning Range | 360° |
General
| Load Capacity | 26.5 lb / 12 kg |
| Weight | 3.3 lb / 1496.85 g |
Packaging Info
| Package Weight | 3.29 lb |
| Box Dimensions (LxWxH) | 7.9 x 5 x 4.5" |
