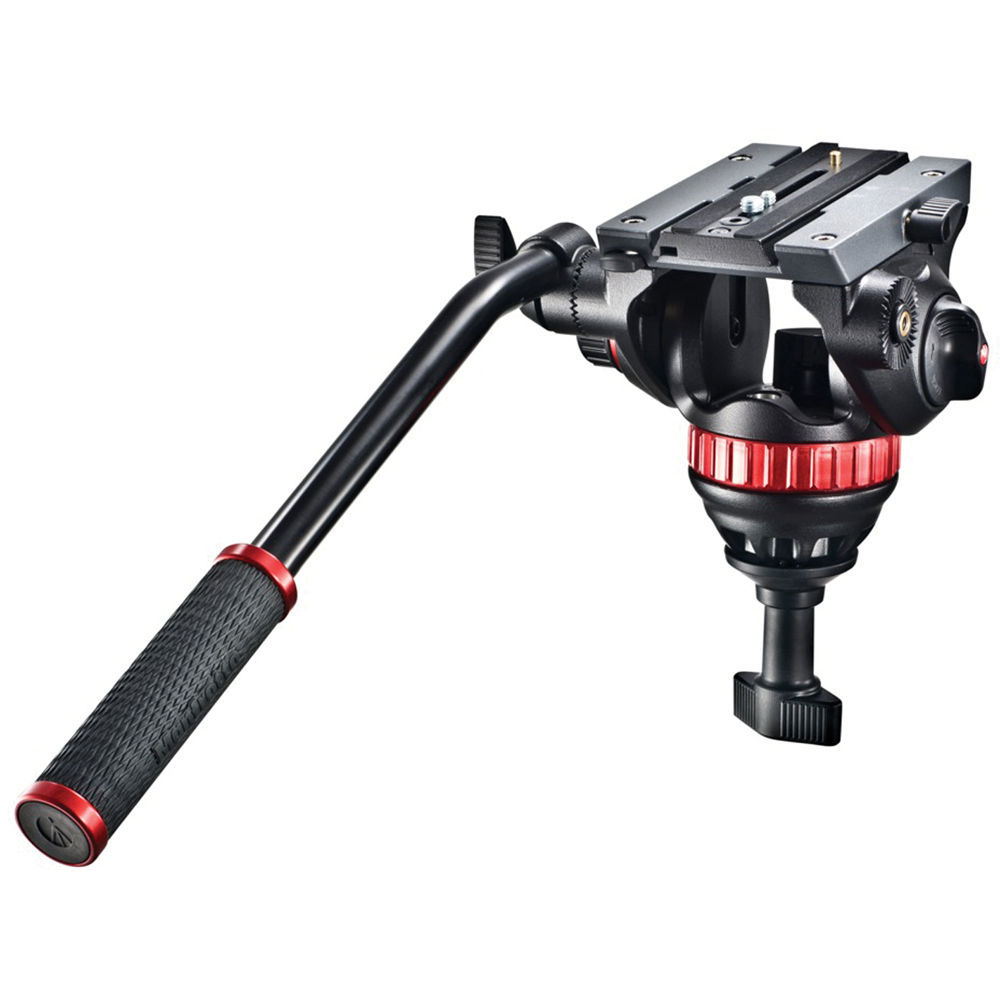

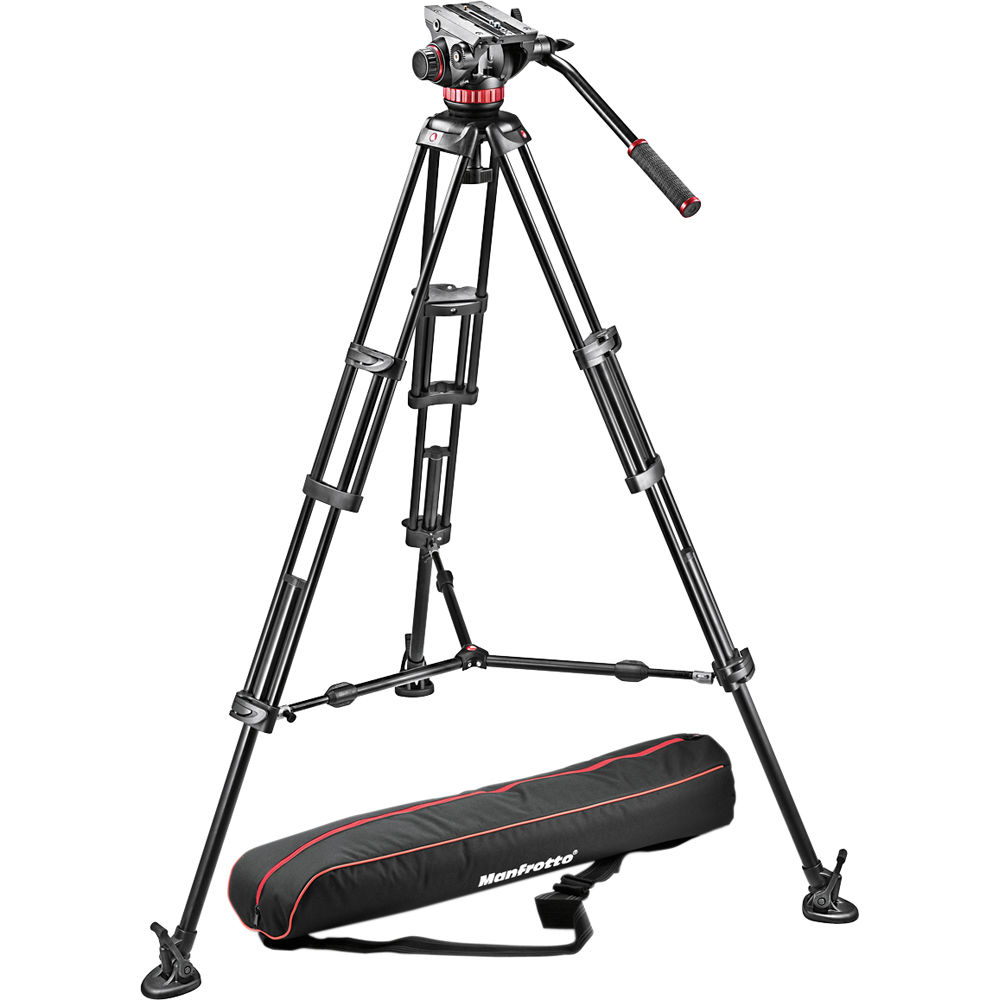

The MVH502A Fluid Head and 546B Tripod System with Carrying Bag is a professional tripod system designed for HDSLR and interchangeable lens cameras. The system combines the MVH502A 75mm half ball fluid head with the 546B tripod with mid spreader. The MVH502 head has a pre-set counterbalance of 8.8 pounds, but can support loads up to 22 pounds. It features two Easy Link connectors to allow an external monitor or other accessory equipment to be fitted directly on the head.

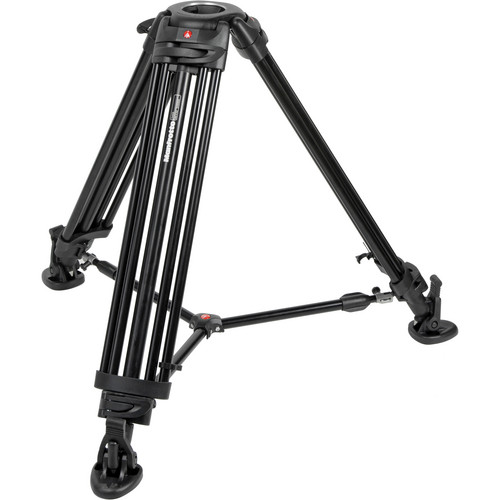

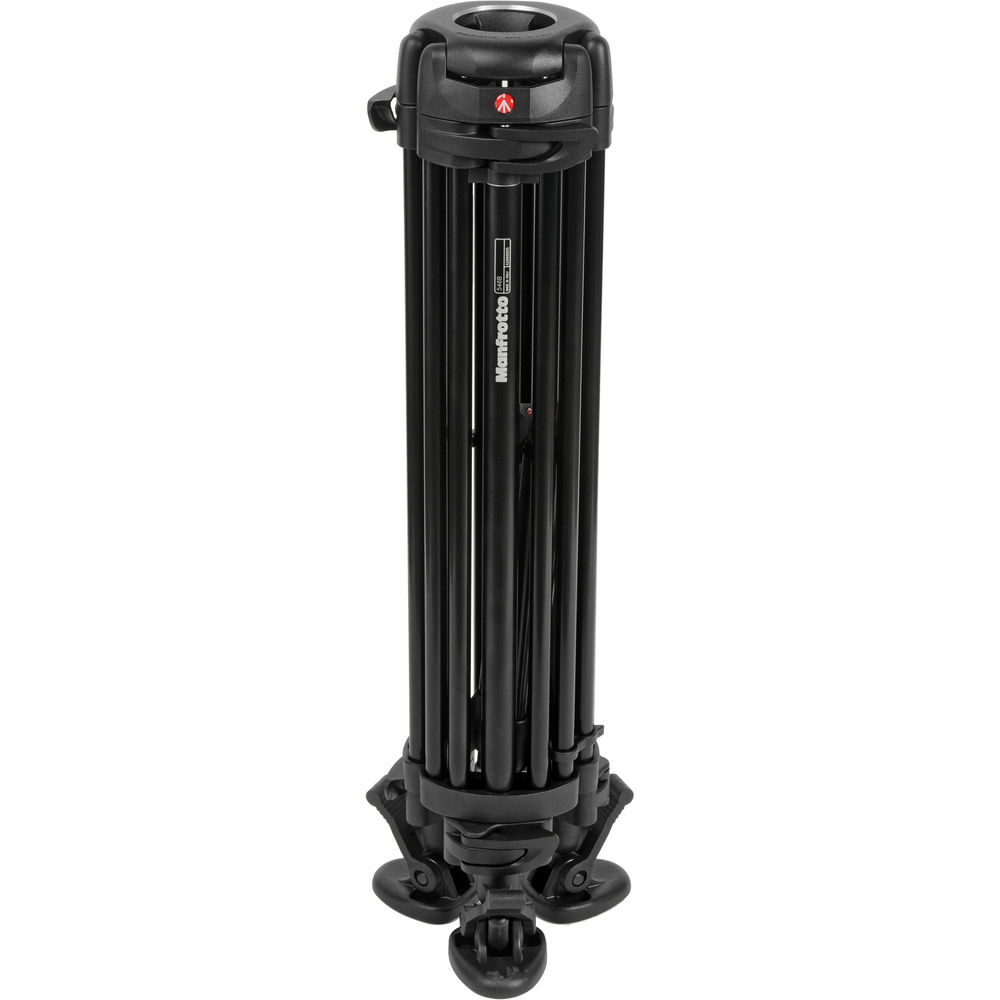

The 546B is a two-stage tripod with a built-in 75mm bowl. The tripod's telescopic mid-level spreader helps set leg angles accurately. Spiked feet with rubber overshoes are provided for solid grounding on both smooth floors and uneven terrain. A padded carrying bag comes included.
Head
| Load Capacity | 15.4 lb (7.0 kg) |
| Counter Balance System | Supports 8.8 lb (4.0 kg) |
| Center of Gravity | 2.16" (5.49 cm) |
| Quick Release/Wedge Plate | 504PLONG |
| Tilt Drag | Continuously adjustable from 0 to max level |
| Tilt Range | -80° / +90° |
| Leg Stages/Sections | Yes |
| Spring Loaded Counter Balance | Yes |
| Pan Range | 360° |
| Pan Lock | Yes |
Legs
| Material | Aluminum |
| Head Attachment Fitting | 75mm bowl |
| Leg Stages | Two/three |
| Center Brace | Yes |
System
| Load Capacity | 15.4 lbs (7.0 kg) |
| Maximum Height | 66.14" (168.00 cm) |
| Minimum Height | 17.32" (43.99 cm) |
| Closed Length | 32.68" (83.01 cm) |
| Leveling Bubble/Illuminated | Yes/No |
| Weight | 12.13 lb (5.50 kg) |
Packaging Info
| Package Weight | 15.7 lb |
| Box Dimensions (LxWxH) | 38.7 x 8.55 x 7.95" |
